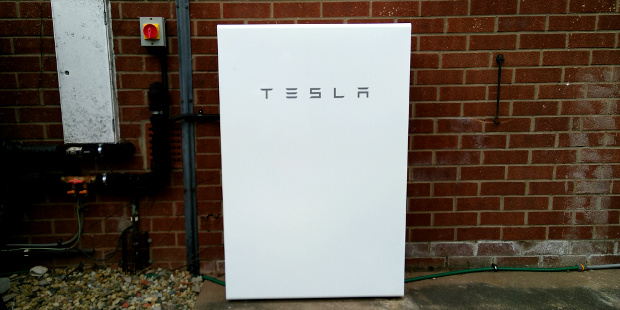

Tesla Powerwall - one of the types of batteries modelled (note, Tesla were not associated with this project)Tesla Powerwall – one of the types of batteries available for domestic batteries, Tesla also produce grid balancing systems as the Powerpack and Megapack. Note, we are not associated with Tesla.

Batteries are becoming increasingly important in the UK, as a necessary part to allow the transition through to 100% renewable energy.

There are various types of battery chemistries. In terms of the MW scale of battery, these are generally Lithium Ion based. Other technologies which are growing in importance include different types of flow batteries, such as vanadium based and zinc-based batteries.

Domestic scale batteries vary, with lithium, flow, and lead acid technologies dominating the market, with the majority lithium technologies.

A concern over lithium based batteries is the large amount of cobalt required, and the human rights within the supply chain, such as within the Democratic Republic of the Congo. Newer technologies, such as flow batteries, do not suffer from these issues. Some manufacturers of batteries work hard to reduce the social and environmental damage within the supply chain, such as the phone company Fairphone.

In terms of grid scale, batteries are up to 49MW in size, and generally have capacity for between 1 and four hours. The 49MW limit is due to planning rules, which have recently changed to remove this barrier, and the ways in which a battery can be controlled as detailed within the Electricity Act. Grid balancing batteries make their money from a wide range of National Grid schemes, such as STOR, FFR, or the Capacity Market. The Capacity Market has undergone a long legal battle, due to the issue that it can be viewed as a subsidy for fossil fuel-based diesel generators or power stations, not just batteries.

Domestic batteries range from about 3kW to 5kW, with capacities ranging from 2kWh to 13.4kWh. There are new offerings from some companies that allow numerous domestic batteries to work together, like a massive distributed grid balancing battery. A domestic battery can allow a consumer to store their solar energy during the day, and then use this energy at night. However, it is very dependent on your electricity tariff to if this is actually worthwhile.

Businesses use larger batteries, in the range of 100kW to 250kW, which allow them to avoid using electricity at peak times, and also to fully utilise the renewable energy installations on their businesses.


  • Grid Scale
    • Grid connection feasibility and G99 application
    • Technical feasibility
    • Preparation of spade ready site
    • Procurement support
    • Computer modelling of wind/solar
  • Domestic Scale
    • Field trials
    • Computer modelling of systems
  • Commercial (behind the meter) scale
    • Grid connection feasibility and G99 application
    • Techno-economic feasibility, including pairing with solar
    • Procurement support
